Self-Watering Window Boxes

Name: Self-Watering Window Boxes
Prep time: 20 min
Cook time: 1 h 30 min
Total time: 1 h 50 min
Yield: 4 boxes
Ingredients: 4 window boxes; 25 ¼-inch Micro Tubing Drip Line Drip Emitters; 25 ¼-inch Barbed Connection T's; 25 ¼-inch Barbed Connection Elbows; 25 ¼-inch Straight Barbed Connectors; 25 ¼-inch Coaxial Staples; 1 ¼-inch to ¾-inch Hose Adapter; 25 ¼-inch tubing stakes; 1 25 PSI Pressure Reducer; 1 Brass ¾ inch hose adapter to connect the pressure reducer to the hose or spigot; 1 Orbit Single Port Dial Timer so that you can make this a totally hands-free system!

User Reviews

0.0

0 reviews

Unrated

Prep Time
20 mins
Cook Time
1 hr 20 mins
Total Time
1 hr 50 mins
Servings
4 boxes

Self-Watering Window Boxes

Georgia Matthews

Report

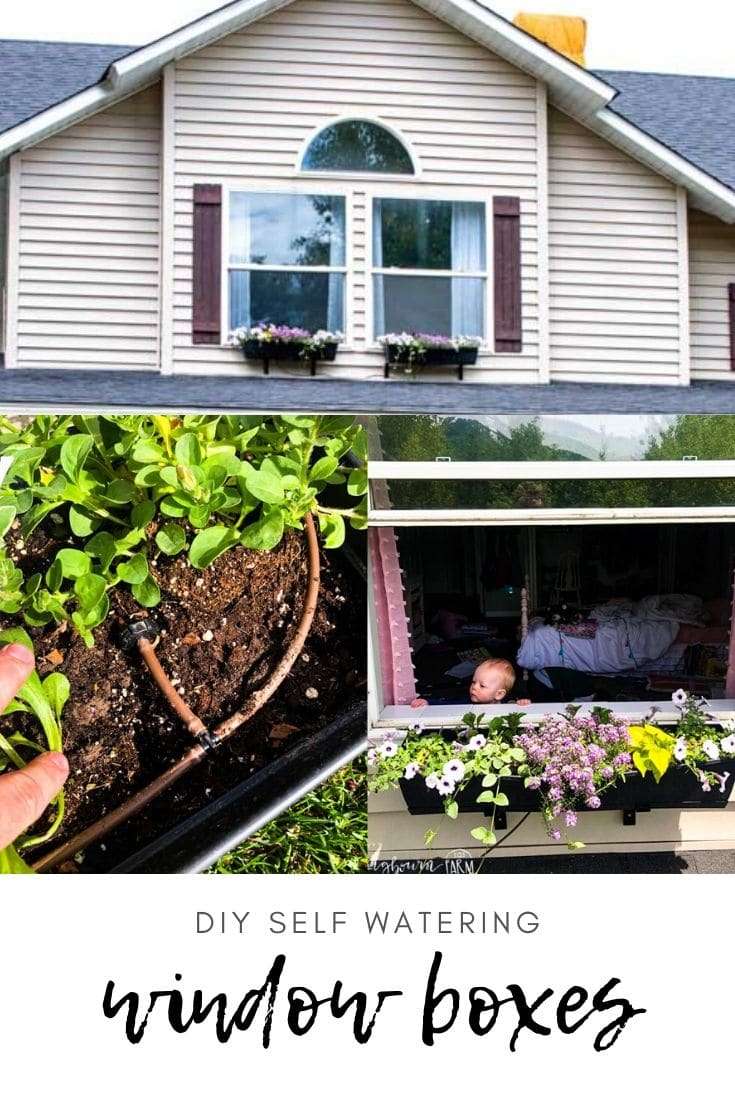

Window boxes are so lovely and a great way to add curb appeal to your home! But how do you water them? With a DIY Self-watering window box drip system!

Share:

I Made This!

Be the first!

Print

3 people printed this

Save this

Be the first!

Ingredients

Servings

4 window boxes see note
25 ¼-inch Micro Tubing Drip Line Drip Emitters I used .5 GPH which is recommended for annuals
25 ¼-inch Barbed Connection T's
25 ¼-inch Barbed Connection Elbows
25 ¼-inch Straight Barbed Connectors
25 ¼-inch Coaxial Staples
1 ¼-inch to ¾-inch Hose Adapter
25 ¼-inch tubing stakes
1 25 PSI Pressure Reducer
1 Brass ¾ inch hose adapter to connect the pressure reducer to the hose or spigot.
1 Orbit Single Port Dial Timer so that you can make this a totally hands-free system!

Add to Shopping List

Instructions

Run the ¼ inch micro tubing drip line up through a drainage hole in the bottom of the window box. Reference this post, DIY Window Boxes, for the window boxes I used.
Once the drip line is up through the drainage hole, fill the window box with soil if it wasn't full already.
Add drip emitters (I used .5 GPH) every 3-4 inches across the window box. I like the drip emitters better than the spray emitters for a few reasons. They keep the water near the soil which reduces evaporation. They also won't spray your windows every time they come on.
You will add the drip emitters by attaching more dripline with T's, elbows, and straight connectors.
Once the emitters have been run along the top of the box, connect the end of the drip line that is coming out of the bottom of the window box to your main line.
We ran ours down along the bracket of the window box so you can't see it and then along the eaves of our house down to the spigot we were using. To keep it in place, we used these coaxial staples.
Test the drip line to make sure it is working once it is all hooked up.
You will need a pressure reducer, ¼-inch to ¾-inch hose adapter, and ¼-inch tubing stakes to keep the micro tubing in place anywhere it is in the soil.
